Description

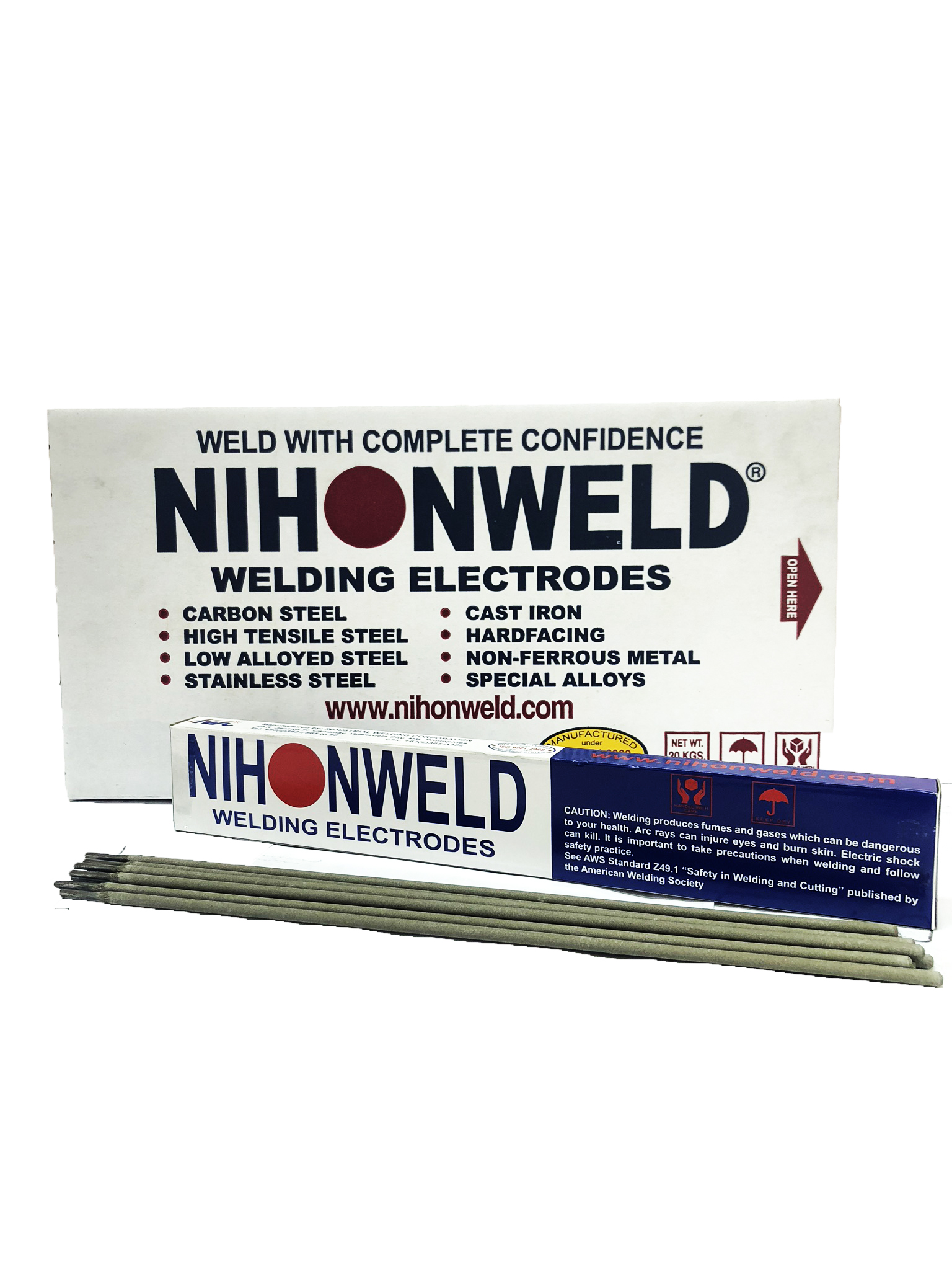

NIHONWELD N-7016 is a high-performance low hydrogen welding electrode developed for welding carbon steel and high tensile steel applications requiring strong mechanical properties and reliable weld integrity. Designed for all-position welding except vertical down, it delivers excellent crack resistance, stable arc characteristics, and X-ray sound weld deposits.
The electrode provides smooth welding performance with minimal spatter generation and easy slag removal, helping improve welding efficiency and weld appearance. Its specially formulated arc starter flux on the electrode tip allows easy initial arc ignition, even during AC welding applications.
NIHONWELD N-7016 offers excellent toughness and dependable mechanical performance, making it suitable for structural fabrication, shipbuilding, industrial maintenance, repair work, and heavy-duty welding operations where reliable weld quality is essential.
Key Features
- Low hydrogen electrode with excellent crack resistance
- Strong mechanical properties and X-ray soundness
- Stable and smooth arc, including AC welding applications
- Easy slag removal and smooth bead appearance
- Low spatter generation
- Easy initial arc ignition with arc starter flux
Classification
- AWS A5.1 E7016
- JIS D5016
- DIN E5154B(R)10
Typical Chemical Composition of Weld Metal Deposits (%)
| C | Si | Mn | P | S |
|---|---|---|---|---|
| 0.07 | 0.53 | 1.06 | 0.011 | 0.008 |
Typical Mechanical Properties of Weld Metal Deposits
| Property | Value |
|---|---|
| Yield Point | 500 N/mm² (73 KSI) |
| Tensile Strength | 570 N/mm² (83 KSI) |
| Elongation | 32% |
| Impact Value | -29°C, 150 J (-20°F, 111 Ft-Lbs) |
Size and Recommended Current Range (AC / DC+)
| Diameter | Length | Flat | Vertical & Overhead |
|---|---|---|---|
| 2.5 mm | 350 mm | 55–85A | 50–80A |
| 3.2 mm | 350 mm | 90–120A | 80–110A |
| 4.0 mm | 400 mm | 120–170A | 100–160A |
| 5.0 mm | 450 mm | 170–220A | 140–190A |
Welding Positions
All Positions Except Vertical Down
Approvals
- ABS
- BV
- DNV.GL
- LRS
Applications
- Structural steel fabrication
- High tensile steel welding
- Industrial maintenance and repair
- Shipbuilding applications
- Heavy-duty industrial welding
- General fabrication work
