Detailed Technical Specifications & Sizing

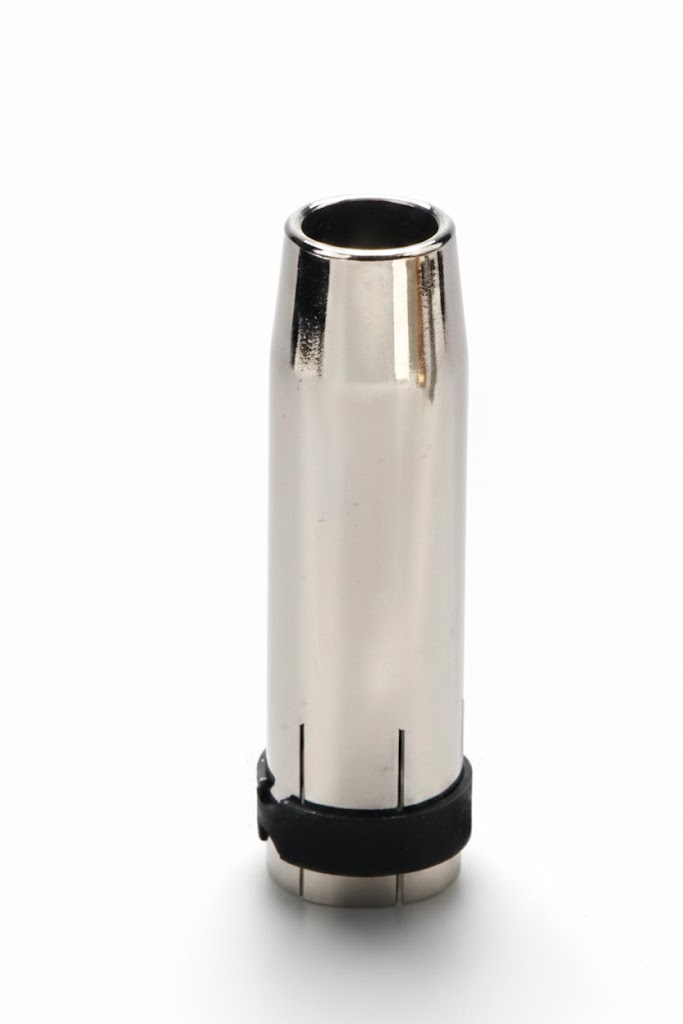

The 24KD nozzle is an industry-standard consumable, essential for maintaining the performance of medium-to-heavy duty air-cooled MIG torches.
| Specification | Technical Details |
| Torch Compatibility | MB 24KD, PRO24, and similar Euro-style MIG Torches |
| Nozzle Shape | Conical (Tapered) |
| Material | Chrome-Plated Copper Alloy |
| Bore Diameter (Tip) | Typically $12.5\text{ mm}$ for precise gas focus |
| Total Length | Approximately $63.5\text{ mm}$ |
| Attachment Type | Friction-fit (Push-on) with internal retaining spring compatibility |
Additional Technical Information:
-
Application Advantage: The conical shape is preferred over cylindrical nozzles for fillet welds and corner joints where a smaller nozzle footprint is required for better torch angles.
-
Spatter Management: While the chrome plating resists spatter, using a nozzle dip or anti-spatter spray is recommended to further extend the service life of the nozzle.
-
Internal Components: Designed to fit over the 24KD gas diffuser and contact tip holder, ensuring a concentric alignment for stable gas coverage.
-
Operating Range: Rated for use in high-amperage applications (up to 250A) across carbon steel, stainless steel, and aluminum fabrication.
